450W-465W

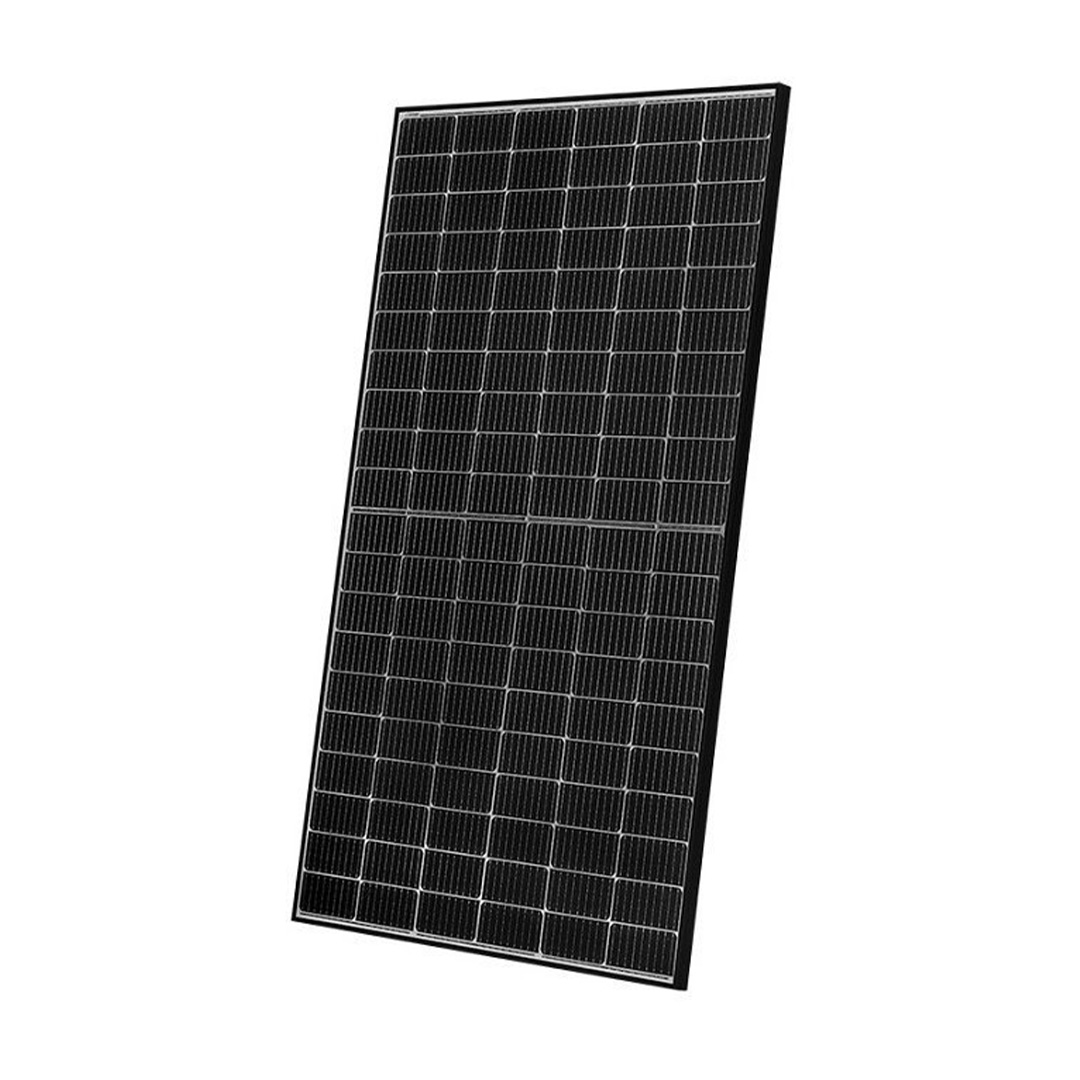

A high-efficiency solar panel, which is made up of 120 M10-10BB solar half-cells. This series of high-efficiency modules provides the most cost-effective solution for solar photovoltaic installations on residential roofs.

Type: 120 Mono 10BB
Power: HALF-CELL | UP TO 465W
Color: metallic/silver
Efficiency: 21.3%
Origin: Bulgaria
Product Warranty: 10 years
Linear Performance Warranty: 25 years
Dimensions: 1908 mm × 1134 mm × 35 mm
Weight: 24 kg.
Junction Box: IP68, MC4 – compatible
Cable Length: 50 cm.

Model Name Rated

Power [Wp]

 Dimensions
[length x width x height]		 Number of cells in module Number of HALF cell per bypass diode
SP-BG-120-450 450 1908 X 1134 X 35 120 40
SP-BG-120-455 455 1908 X 1134 X 35 120 40
SP-BG-120-460 460 1908 X 1134 X 35 120 40
SP-BG-120-465 465 1908 X 1134 X 35 120 40



Module type SP-BG-120-450 SP-BG-120-455 SP-BG-120-460 SP-BG-120-465
STC condition Pmp [W] /Tolerance 450 455 460 465
Voc [V] /Tolerance 41.40 41.51 41.65 41.78
Isc [Adc] /Tolerance 13.80 13.87 13.95 14.08
Vmp [V] 34.60 34.73 34.87 34.99
Imax [Adc] 13.01 13.10 13.19 13.28
BNPI condition Pmp [W] /Tolerance ± 3% ± 3% ± 3% ± 3%
Voc [V] /Tolerance ± 3% ± 3% ± 3% ± 3%
Isc [Adc] /Tolerance ± 3% ± 3% ± 3% ± 3%
bifaciality coefficient φPmax n/a n/a n/a n/a
φVoc n/a n/a n/a n/a
φIsc n/a n/a n/a n/a
Maximum system voltage [V] 1500 1500 1500 1500
Maximum Over-Current Protection Rating [A] 25 25 25 25

Download installation instructions from here.
